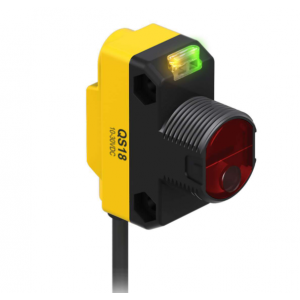

邦納光電傳感器QS18VN6LD
WORLD-BEAM QS18 Series: Laser Diffuse
Range: 300 mm; Input: 10-30 V dc
Output: Complementary Solid-State NPN
2 m (6.5 ft) Cable
邦納光電傳感器
零部件號： 73034
IP RatingIP67
NEMA / UL Type RatingNEMA 4X
Cable Length (m)2
Sensing BeamVisible Red Laser
PowerDC
Sensing Mode (General)Proximity
Sensing Mode (Detailed)Diffuse
Housing StyleRectangular w/M18 Mount
Primary Housing MaterialABS
Laser ClassificationClass 1
Small Visible SpotLaser
Input OutputDiscrete
Max Sensing Distance (mm)300
OutputsNPN
Power Supply/Supply Voltage10-30 V dc
ConnectionCable
Min Op. Temp. (°C)-10
OperationLight/Dark Operate
Max Op. Temp. (°C)50
Output response time (ms)0.7
Sensing Beam Wavelength650
Delay at Power-up (ms)200
Repeatability (µs)130
Number of Pins4
Max Op. Relative Humidity [%]95% @ 50°C
Lens MaterialAcrylic
AdjustmentsPotentiometer
Barrel Diameter (mm)18
IndicatorLEDs
Feature: AudibleNo
EPLAN StatusPublished
EPLAN Original Sent Date06/20/2022
