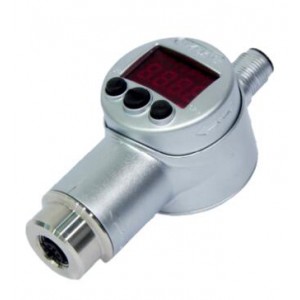

賀德克溫度傳感器 ETS 3800是一款具有4位數字顯示的緊湊型電子溫度開關。

該版本適用于單獨的溫度探頭，其測量范圍為-22..+302 ºF，主要用于專為油箱安裝而開發的TFP 100溫度探頭。

但是，也可以評估常用的PT 100溫度探頭。

具有一個或兩個開關輸出和可能的附加模擬輸出信號的不同輸出版本，提供了多種應用可能性。

使用按鍵板可以非�？焖俸洼p松地調整開關點和相關的滯后。

Specifications

Type	Electronic Temperature Switch
Model Code Description	ETS 3866-2-000-000
Direct Current (DC) Supply Voltage When Applied According to UL Specifications (Without Analog Output)	9 to 35 V
Note for Direct Current (DC) Supply Voltage When Applied According to UL Specifications	Limited energy - According to 9.3 UL 61010; Class 2; UL 1310/1585; LPS UL 60950
Maximum Current Consumption (With Inactive Switching Output)	35 mA
Maximum Current Consumption (With Inactive Switching Output and Analog Output)	55 mA
Display	4-Digit, LED, 7 Segment, Red, Height of Digits 7 mm
Weight	~87 g
Maximum Output Permitted Load Resistance	500
Minimum Output Permitted Load Resistance	1 k
Switching Function	Switching direction of the switching outputs adjustable (N/C or N/O)
Electrical Connection	Male M12x1, 4 Pole
Switch Point	-27.0 to 150.0 ºC-17 to 296 ºF
Residual Ripple of Supply Voltage	≤ 5 %
Hysteresis (Switch Point)	1.0 to 178.0 ºC2.0 to 320.0 ºF
Increment (Switch Point)	0.5 ºC1.0 ºF
Note for Increment (Switch Point, Window Function) According to customer specification xxxxxxxxxxxxxxxxx" style="box-sizing: inherit; border: 1px solid rgb(0, 170, 184); background: rgb(0, 170, 184); color: rgb(255, 255, 255); border-radius: 10px; width: 17px; float: left; margin: 5px;">	All ranges given in the table can be adjusted by the increments shown.
Lower Switch Value (Window Function)	-27.0 to 146.5 ºC-17 to 296 ºF
Upper Switch Value (Window Function)	-25.5 to 148 ºC-14 to 298 ºF
Increment (Window Function)	0.5 ºC1.0 ºF
Maximum Total Current Consumption	2.455 A
Modification Number	000
Width	40.4 mm
Height	93.2 mm
Separate Temperature Probe (Not Supplied With the Instrument)	TFP 104 - 000 with male electr. conn. 4 pole Binder series 714 M18 (connector supplied) Part no. 904696 TFP 106 - 000 with male electr. conn. 4 pole M12x1 (connector not supplied) Part no. 921330 Tank installation sleeve for TFP 100 Part no. 906170
Switching Outputs	2 Switching Outputs
Division	17
BUn	EA

Input Data

Measuring Range	-30 to 150 ºC-22 to 302 ºF
Note for Measuring Range	Depending on the temperature range of the connected temperature sensor, the indication range of the ETS 3800 may be reduced.
Length	42 mm
Input Mechanical Connection Type	M12 Female Cable Connection
Input Mechanical Connection Size	M12x1, 4 Pole Female
Sensing Temperature [Max]	150 ºC302 ºF
Sensing Temperature [Min]	-30 ºC-22 ºF

Output Data

Accuracy at Room Temperature	≤ ± 2.0ºF (+ PT100 error)
Operating Temperature [Min]	-25 ºC-13 ºF
Operating Temperature [Max]	80 ºC176 ºF
Output Temperature Drift at Maximum Zero Point and Range (Full Scale)	≤ ± 0.0085% %/°F

Switch Outputs

Switch Outputs Type	PNP Transistor Switching Output
Maximum Switching Current Per Switch Output	1.2 A
Switching Cycles In Million	> 100 million

Environmental Conditions

Ambient Temperature Range	-13 to 176 ºF
Ambient Temperature According to UL Specifications	-13 to 140 ºF
Storage temperature range	-40 to 176 ºF
CE Mark	CE Mark EN 61000-6-1/2/3/4
CUL^®US Mark	Certificate No.: E318391
Note for CUL^®US Mark	Environmental conditions according to 1.4.2 UL 61010-1; C22.2 No. 61010-1
Vibration Resistance According to DIN EN 60068-2-6 at 0 to 500 Hz	≤ 10 g
Shock Resistance According to DIN EN 60068-2-29 (11 ms)	≤ 50 g
Protection class to IEC 6529	IP 67

Pin Connections

Pin Connection 1	+U_B
Pin Connection 2	SP2
Pin Connection 3	0 Voltage
Pin Connection 4	SP1

Setting Options

All the settings available on the ETS 3800 are combined in 2 easy-to-navigate menus. To prevent unauthorized adjustment of the instrument, a programming lock can be set.

Additional Information

For optimum adaptation to the particular application, the instrument has many additional adjustment parameters (e.g. switching delay times, N/C / N/O function, etc.).

Accessories

A male cable connector M12x1, 4 pole, to connect the separate temperature probe and a 3 m sensor cable, LIYCY 4 x 0.25 mm² are supplied with the instrument. Other accessories, such as electrical connectors, splash guards, clamps for wall-mounting, etc. can be found in the Accessories brochure.

Special Features

2 switching outputs, up to 1.2 A load per output
Optional analog output signal selectable (4 .. 20 mA / 0 .. 10 V)
4-digit digital display
Optimum alignment - display can be rotated in two planes (axes)
Switching / switch-back points and many useful additional functions can be set using keypad
Display of temperature and unit of measurement in ºC or ºF
Switching mode of the switching outputs adjustable (switching point function or window function)
Switching direction of the switching outputs adjustable (N/C or N/O)
Switch-on and switch-off delay adjustable from 0.00 .. 99.99 seconds
Choice of display (actual temperature, peak temperature, switching point 1, switching point 2, display off)

Note

Reverse polarity protection of the supply voltage, excess voltage, override and short circuit protection are provided.

Subject to technical modifications.
