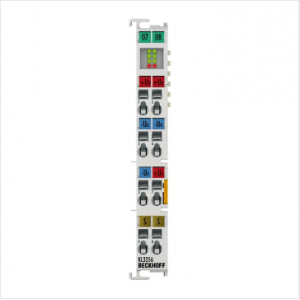

倍福KL3356 | Bus Terminal, 1-channel analog input

點擊圖片查看原圖

店鋪基本資料信息

產(chǎn)品詳細說明

Technical data	KL3356
Number of inputs	2, for 1 resistor bridge
Power supply	via the K-bus
Signal voltage	UD: -20…+20 mV UREF: -12…+12 V
Signal voltage UD, UREF	-20…+20 mV, -12…+12 V
Technology	strain gauge connection
Internal resistance	> 200 kΩ (UREF), > 1 MΩ (UD)
Power supply UV	via power contacts
Conversion time	< 250 ms, configurable
Filter	50 Hz, configurable
Resolution	16 bit
Measurement error/ uncertainty	< ±0.01 % (relative to full scale value)
Current consumption power contacts	load only
Current consumption K-bus	typ. 85 mA
Bit width in the process image	input: 2 x 16 bit data (2 x 8 bit control/status optional)
Special features	increased measuring accuracy, self-calibration
Weight	approx. 75 g
Operating/storage temperature	0…+55 °C/-25…+85 °C
Relative humidity	95 %, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, UL, ATEX, IECEx
Pluggable wiring	for all KSxxxx Bus Terminals
Ex marking	ATEX: II 3 G Ex nA IIC T4 Gc IECEx: Ex ec IIC T4 Gc

Housing data	KL-12-8pin	KS-12-8pin
Design form	compact terminal housing with signal LEDs	terminal housing with pluggable wiring level
Material	polycarbonate
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxx series
Wiring	solid conductor (e), flexible conductor (f) and ferrule (a): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²	s: 0.08…1.5 mm², st: 0.08…1.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG 28…14, st: AWG 28…14, f*: AWG 26…16	s: AWG 28…16, st: AWG 28…16, f*: AWG 26…16
Stripping length	8…9 mm	9…10 mm
Current load power contacts	Imax: 10 A
