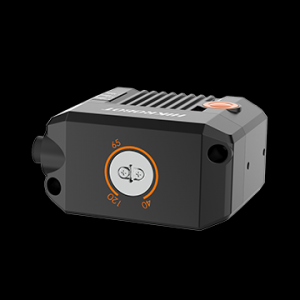

海康威視 130萬YAG激光極小型讀碼器 MV-ID2013M-06S-RBP-YAG

點擊圖片查看原圖
品牌: ?低
品牌: 海康威視
單價: 面議
所在地: 北京
有效期至: 長期有效
最后更新: 2023-04-12 16:33
瀏覽次數: 190
詢價
店鋪基本資料信息

產品詳細說明
important;">型號 important;">型號 important;">MV-ID2013M-06S-RBP-YAG
important;">名稱 important;">130萬YAG激光極小型讀碼器
important;">性能 important;">條碼類別 important;">一維碼:Code 39,Code 93,Code 128,ITF14,ITF25,CodaBar,EAN8,EAN13,UPCA,UPCE等
二維碼:QR,DataMatrix等
important;">***大處理幀率 important;">60 fps
important;">***大讀取速度 important;">45個碼/秒
important;">傳感器類型 important;">CMOS,全局快門
important;">像元尺寸 important;">4 µm × 4 µm
important;">靶面尺寸 important;">1/2.7”
important;">分辨率 important;">1280 × 1024
important;">曝光時間 important;">35 μs ~ 1 sec
important;">增益 important;">0 ~ 15 dB
important;">黑白/彩色 important;">黑白
important;">通訊協議 important;">SmartSDK,TCP Client,Serial,F(xiàn)TP,TCP Server,Profinet,Melsec/SLMP,Ethernet/IP,ModBus TCP,UDP,F(xiàn)ins
important;">電氣特性 important;">數據接口 important;">Fast Ethernet(100 Mbit/s)
important;">數字I/O important;">17-pin M12接口提供電源和I/O:包含4路非隔離雙向I/O(默認配置為2路輸入,2路輸出),1路RS-232
支持通過側面按鈕觸發設備
important;">供電 important;">12 ~ 24 VDC
important;">***大功耗 important;">10.6 W@24 VDC
important;">結構 important;">焦距 important;">6.72 mm
important;">鏡頭接口 important;">M12-Mount,可手動調焦
important;">工作距離 important;">40 ~ 120 mm
important;">環境光照 important;">0 ~ 50000 lux
important;">光源 important;">紅色(偏振)
important;">瞄準器 important;">綠光LED
important;">指示燈 important;">電源指示燈PWR,網絡指示燈LNK,狀態指示燈STS
important;">外形尺寸 important;">46 mm × 38 mm × 25 mm
important;">重量 important;">約160 g
important;">IP防護等級 important;">IP65
important;">溫度 important;">工作溫度 0 ~ 50℃,儲藏溫度-30 ~ 70℃
important;">濕度 important;">20% ~ 95%RH 無冷凝
important;">一般規范 important;">軟件 important;">IDMVS
important;">認證 important;">CE,RoHS,KC
