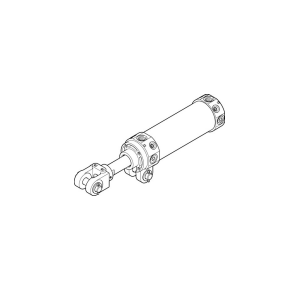

焊接過程中夾緊零件的理想選擇：采用鉸接結構的圓形氣缸 DW。軸承蓋上的雙耳環。 • 在焊接過程中夾緊部件 • 雙作用 • 通過前端蓋上的萬向節叉形端實現方便的安裝 • 集成式節流閥 • 集成式終端緩沖 • 桿式壓力密封件，用于防焊渣 • 亞洲汽車車身生產標準
1] Different options for sensing the piston rod position:
– Via sensor rail (a Figure)
– Via mounting kit SMBR with proximity switch SMT-8M or SDBT-BSW
– Via external proximity switch using a switch lever
[2] Swivel bearing on the cylinder.
The fork gaps of the rod clevis and swivel bearing are identical
[3] Different rod clevis gaps can be selected
[4] Integrated flow control
[5] Integrated end-position cushioning
[6] Pneumatic connection, either:
– Via Rc or G thread
– Connection options on three sides
(e.g. by modifying the sensor rail)
注：更新導致更改恕不另行通知
