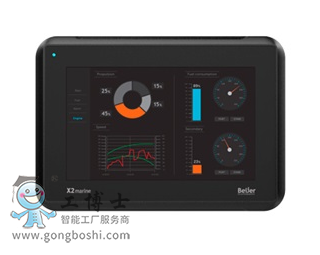

北爾觸摸屏 X2 marine 7 HB 7'' HMI with iX software

點擊圖片查看原圖
品牌: 北爾
像素: 800 × 480 pixel (16:9)
單價: 面議
所在地: 北京
有效期至: 長期有效
最后更新: 2023-12-04 09:27
瀏覽次數(shù): 786
詢價
店鋪基本資料信息

產(chǎn)品詳細說明


X2 marine 7 HB

7'' HMI with iX software


  • 800 × 480 pixel (16:9) TFT-LCD touch screen
  • 1.5 GB application memory
  • Ethernet 2x100 Mbit
  • High brightness display and digital outputs
  • CE, FCC, KCC, UL approvals
  • DNV, KR, GL, LR, ABS, CCS marine approvals
  •  Facts

    General description

    Part number 630008705
    Part status Active
    Warranty 2 year

    Certifications

    General CE, FCC, KCC, UL 61010-2-201
    Marine KR, LR, ABS, CCS, NK, DNV GL, BV

    Mechanical

    Mechanical size 204 x 143 x 50mm
      Panel Mount, VESA 75 x 75
      1million finger touch operations
    Touch type Resistive
    Cut-out size 189 x 128mm
    Weight 0.8 kg
    Housing material Powder-coated aluminum, Black

    Power

    Input voltage 24 V DC (18 to 32 VDC)CE: The power supply must conformwith the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supplymust conformwith the requirements for class II power supplies.
    Power consumption (max) 21.6W
    Input fuse Internal DC fuse



    CPU i.MX6Quad, Quad ARMCortex-A9 1.0GHz 1MBL2cache
    RAM 2 GB
    FLASH 2GB SSD(eMMC), 1.5GB free for application

    Display

    Size diagonal 7" diagonal
    Resolution 800x480 pixels
    Backlight LED Backlight
    Backlight life time 50000 hours
    Backlight brightness 1000 cd/m2
    Backlight dimming Marine optimized dimming
    Display type TFT-LCD with LED backlight
