施耐德新推出的Lexium 16D伺服驅動器和BCH16電機組合專為實現機器的輕松集成與調試而設計，為大多數基礎運動控制機器提供理想的性能。
important; overflow-wrap: break-word !important;">
important; overflow-wrap: break-word !important;">
important; overflow-wrap: break-word !important;">本系列包含0.1KW~~1.5KW的多種驅動器及伺服電機，集成了實時自適應整定和自適應陷波濾波器功能，以及能夠適應低剛性機器的穩定性、高剛性機器的高速高精度等不同要求的剛性等級選擇及自動切換功能，結合采用2500線增量編碼器的AC伺服電機，實現接口簡易以及機械、定位驅動的簡單操作，能夠適應于范圍較廣的機器。
important; overflow-wrap: break-word !important;">
important; overflow-wrap: break-word !important;">

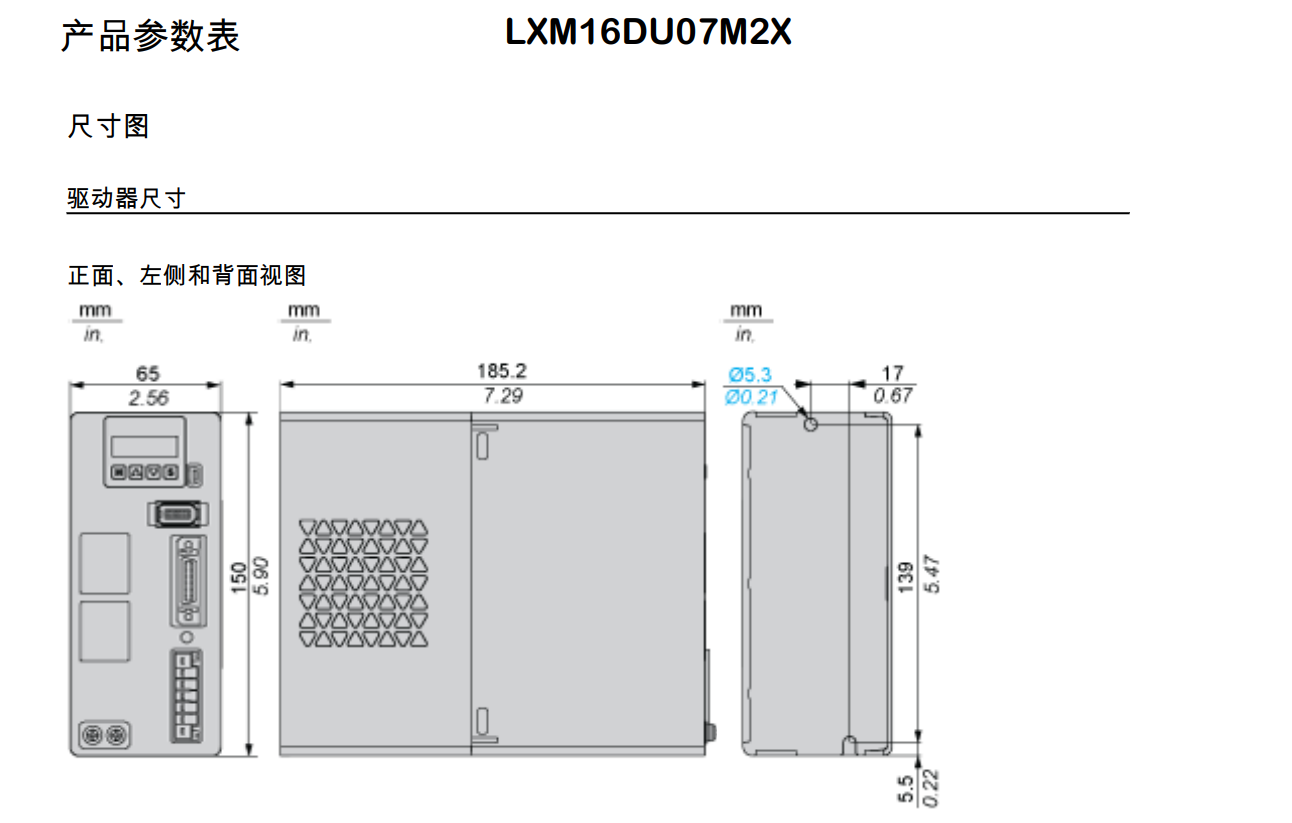

important; overflow-wrap: break-word !important;">從外觀上看，LXM16系列伺服與前期發布的LXM26、LXM28系列產品相似，但接口布局卻略有不同。
important; overflow-wrap: break-word !important;">
important; overflow-wrap: break-word !important;">集成的HMI位于正上方，從左到右四個按鍵依次是：
important; overflow-wrap: break-word !important;">按鍵M--上箭頭--下箭頭--按鍵S
important; overflow-wrap: break-word !important;">右上側是CN3，Mini-USB調試接口
important; overflow-wrap: break-word !important;">下方是CN2，編碼器反饋接口
important; overflow-wrap: break-word !important;">中間是CN1， 26芯IO接口
important; overflow-wrap: break-word !important;">*底部是CNP，包括電源輸入、電機、制動電阻接線
important; overflow-wrap: break-word !important;">
important; overflow-wrap: break-word !important;">通過HMI面板調試步驟：
important; overflow-wrap: break-word !important;">新機上電面板正常顯示FSu
important; overflow-wrap: break-word !important;">1、按S鍵切換到參數P6-00，再按S進入顯示nonE，再次按S編輯參數。通過上下鍵選擇實際電機型號，然后長按S鍵保存。再連續單擊M鍵3次退出，顯示器顯示boot，*后單擊S鍵驅動器會重啟并切換到rdy狀態。
important; overflow-wrap: break-word !important;">
important; overflow-wrap: break-word !important;">2、設置DI點功能，處理限位和暫停信號
important; overflow-wrap: break-word !important;">出廠配置
important; overflow-wrap: break-word !important;">DI2：P3-02=122 正限位（常閉）
important; overflow-wrap: break-word !important;">DI3：P3-03=123 負限位（常閉）
important; overflow-wrap: break-word !important;">DI5：P3-05=104 暫停（常閉）
important; overflow-wrap: break-word !important;">以上信號如果沒有接線，請依次設置為常開點
important; overflow-wrap: break-word !important;">P3-02=022
important; overflow-wrap: break-word !important;">P3-03=023
important; overflow-wrap: break-word !important;">P3-05=004
important; overflow-wrap: break-word !important;">更改的設置重新上電生效
important; overflow-wrap: break-word !important;">注意：斷電后等面板沒顯示以后再上電
important; overflow-wrap: break-word !important;">
important; overflow-wrap: break-word !important;">3、點動測試
important; overflow-wrap: break-word !important;">
important; overflow-wrap: break-word !important;">在rdy狀態下單擊S鍵進入OP參數組，再單擊S進入JOG，再點擊S進入JGSt參數，再次單擊S驅動器使能輸出，面板顯示JG-，此時，可通過上下鍵選擇點動方向和點動速度，再長按S鍵電機開始運動。按M鍵電機停止，使能關閉。
important; overflow-wrap: break-word !important;">
important; overflow-wrap: break-word !important;">4、自整定
important; overflow-wrap: break-word !important;">
important; overflow-wrap: break-word !important;">rdy狀態下按S鍵進入OP，再按S鍵進入JOG，按向下箭頭切換到tun參數，然后再按S鍵進入tuSt。此時單擊S鍵開始簡單自整定。
important; overflow-wrap: break-word !important;">整定過程中，面板會顯示t-數字的進度，完成后面板顯示donE，然后按S鍵保存整定結果。
important; overflow-wrap: break-word !important;">
