福斯Flowserve MARK EIGHT直行程調節控制閥

點擊圖片查看原圖
品牌: Valtek
Size: 1" - 20"
Pressure: Class 150 & 2500
單價: 面議
所在地: 上海
有效期至: 長期有效
最后更新: 2017-07-16 22:41
瀏覽次數: 388
詢價
店鋪基本資料信息

產品詳細說明

The Valtek® Mark EightTM control valve is designed with a unique “Y” style globe body that provides higher flow capacities and less process turbulence than conventional globe valves.

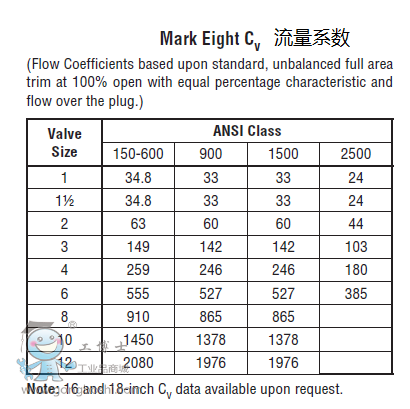

Because of its nearly straight-through fl ow passage, the “Y”style body is less fl ow restrictive than a normal globe-style body. This permits less pressure to be converted into velocity as the fl uid passes through the seat, resulting in a lower valve recovery factor and higher capacity. Table I on page 3 gives nominal CV values for Mark Eight valves.
Mark Eight’s straight-through design generates less valve and piping turbulence which signifi cantly reduces harmful noise and vibration levels.
Like the Valtek Mark One globe valve, the Mark Eight features streamlined, constant area fl ow passages, top-entry trim, a four-way positioner, and a high thrust cylinder actuator. The Mark Eight is completely interchangeable with the Mark One except for the body, seat retainer, bonnet, and plug. The packing box, actuator, seat ring, fl anges, and gaskets are all standard, off-the-shelf items for fast delivery and minimal parts inventory.



Features and Benefits

• Lower valve recovery factor and higher Cv per given size over traditional globe style valves due to the nearly straight-through passage of the Y-style body
• Significantly reduced noise and vibration owing to less restrictive body style, which generates less line turbulence
• Easy, low-cost maintenance and extremely tight shutoff made possible by clamped-in seat and self-aligning seat ring
• Decreased inventory carrying costs from a high degree of interchangeability with Mark One Series valves



Size Range: NPS 1 to 20
Pressure Class Range: 150 to 2500
Operating temperature:
-196°C to 815°C (-320°F to 1500°F)



Mark eight001Mark eight002
關于福斯閥門的更多產品及應用,請關注 http://www.flowserve-valve.gongboshi,com
