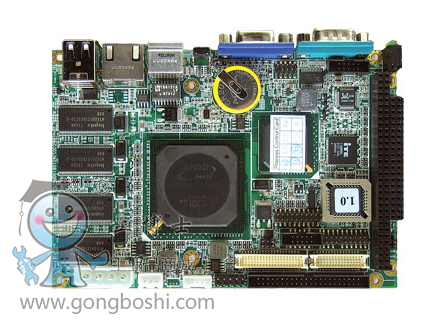

AMD® Geode™ LX800 3.5" Compact Board EmCORE-a5364

點擊圖片查看原圖
品牌: 臺灣磬儀
單價: 面議
所在地: 北京
有效期至: 長期有效
最后更新: 2016-06-29 10:38
瀏覽次數: 450
詢價
店鋪基本資料信息

產品詳細說明
 QQ截圖20160629103406
CPU AMD® Geode LX800 500MHz processor
Memory Soldered onboard 256MB DDR SDRAM
Chipset AMD® LX800 + CS5536
BIOS Phoenix-Award PnP Flash BIOS
Storage 1 x Ultra ATA, support 2 IDE devices
1 x CompactFlash Type II Socket
1 x Floppy disk drive share with parallel port
Watchdog Timer 1~255 levels reset
I/O Interface
Serial Port 4 x COM ports (3 x RS-232, 1 x RS-232/422/485 selectable)
Parallel Port SPP/EPP/ECP mode selectable
USB Port 4 x USB 2.0 ports
KB/MS 2 x 5-pin headers for PS/2 interface Keyboard and Mouse
Digital I/O 8-bit Digital Input/Output
Expansion Bus PC/104 interface
Ethernet
Chipset 2 x Realtek RTL8100CL PCI 10/100Base-T Ethernet controllers
Audio
CODEC/Interface Realtek ALC203 AC97 Audio Codec, Mic-in/Line-in/Line-out
Display
Graphics Chipset AMD® Geode LX800 integrated VGA controller with 2D engine (shared memory Max. 64MB)
Graphics Interface Analog RGB: 1920 x 1440 @85Hz
LCD: 18/24-bit TTL up to 1600 x 1200 (60Hz)
18-bit LVDS up to 1600 x 1200 (60Hz)
Mechanical & Environmental
Power Requirement Big 4P AT power connector
Power Consumption 1.1A/5V
Operating Temp. 0 ~ 60°C (32 ~ 140°F)
Operating Humidity 0 ~ 95% (non-condensing)
Dimension (L x W) 146 x 102 mm (5.7" x 4")
Ordering Information
EmCORE-a5364VL2 AMD® Geode™ LX800 3.5" compact board
CBK-14-5364-00 Cable kit
1 x Audio cable
2 x USB cables
4 x COM port cables
1 x LPT to FDD cable
1 x IDE cable
1 x LPT cable
2 x LAN cables
1 x VGA cable
1 x KB & MS cable
